Fire Alarm System – Definition, Components, and Types
A Fire Alarm System is a critical fire safety solution designed to detect fire, smoke, or heat and alert occupants so they can take immediate action to protect lives, staff, and property. These systems play a vital role in early fire detection and emergency evacuation.
Fire alarm systems are widely installed in offices, factories, commercial buildings, residential complexes, and public places. Although they are part of everyday infrastructure, they often go unnoticed until an emergency occurs—when they can save lives and reduce fire damage.
How Does a Fire Alarm System Work?
A fire alarm system operates through various fire detection devices, such as smoke detectors, heat detectors, and manual call points. When any of these devices sense signs of fire, the system is activated.
Alarm sounders and visual indicators operate immediately
Occupants are warned of a potential fire emergency
People are guided to evacuate the building safely

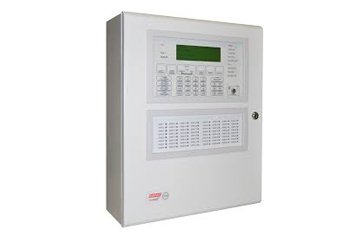

Fire Alarm Control Panel – The Brain of the System
It is the central control unit of a conventional fire alarm system
Connects with smoke detectors, heat detectors, manual call points, and sounders
Indicates fire or fault conditions by zone, not by exact device location
Commonly used in small to medium-sized buildings

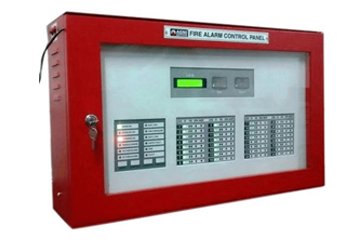

Each device has a unique address for precise identification
Displays exact location of fire, smoke, or system fault
Supports large and complex buildings
Faster fault detection and easier maintenance
Programmable zones and cause-and-effect logic
Reduces false alarms through intelligent monitoring
- Addressable capability: Each device has a unique ID so the panel shows exactly which detector was triggered.
- Battery backup: Keeps the system alive if power fails.
- Remote monitoring or app control (some models).
- Expandable capacity – panels can support many detectors.

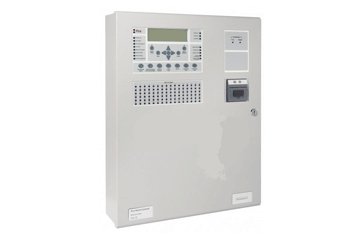

Support for both conventional zones and addressable loops
Expandable capacity for more devices
Event logging & diagnostics
User interface with status display
Compatibility with both old and new alarm devices
Optional networking with other systems
The Fire Alarm Control Panel (FACP) is the central monitoring unit of the fire alarm system. It receives signals from all detection devices and controls the system’s response.
Key functions of the fire alarm control panel include:
Monitoring smoke and heat detectors
Displaying system status and fault indications
Activating alarms during a fire emergency
Allowing manual or test activation for fire drills
The control panel can be programmed to simulate alarm conditions, ensuring that employees and occupants are trained and know the correct evacuation procedure during a real fire.
Fire Alarm System Diagram and Components

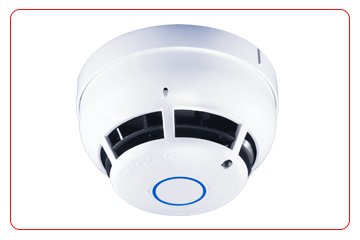

Smoke Detector

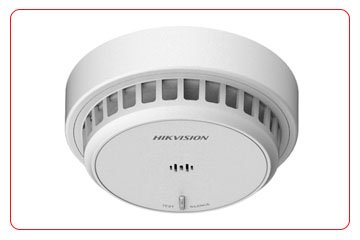

Heat Detector
Flame Detector

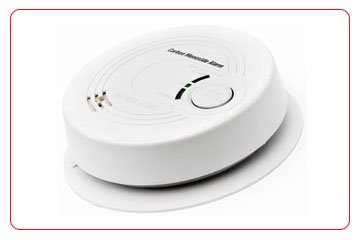

Gas Detector

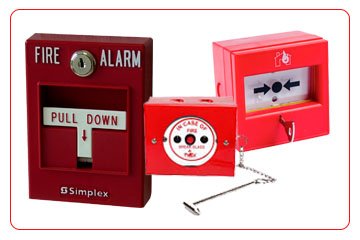

Mannual Call Point

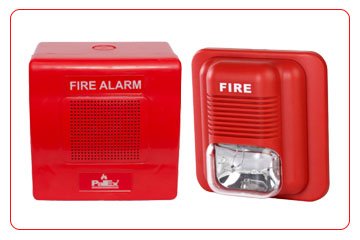

Hooter

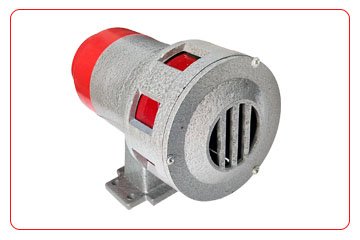

Siren

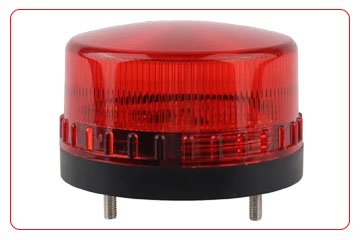

Strobe Light

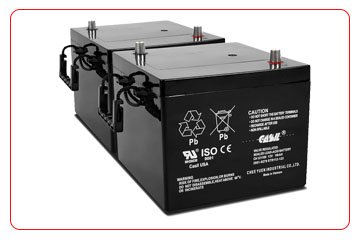

Batteries

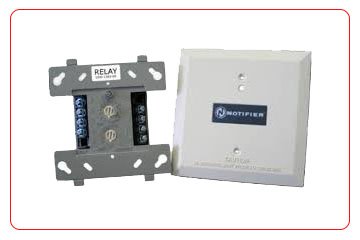

Relay Module

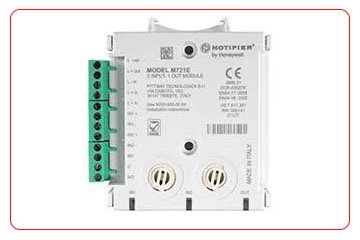

In-Output Module

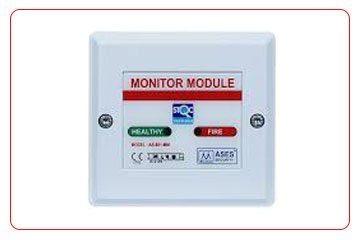

Monitor Module
A fire alarm system is the first line of defense against fire hazards. Choosing the right type of system and detectors based on building size and risk level is essential for effective fire protection.
